CONSTRUCTION DIVISION
ISIwall, external thermal insulation
The ISIwall range includes four specific solutions for external wall insulation, designed to meet different application and performance requirements.
ISIWALL, THERMAL INSULATION

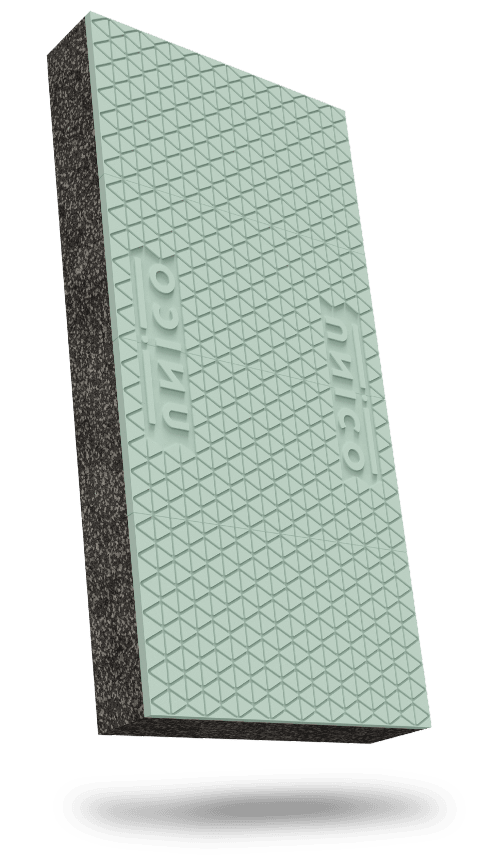

Un!co
The best for your insulation. UN!CO is Politop’s external thermal insulation panel that combines high technical performance, durability, and attention to detail. From its special manufacturing process to the protective packaging, every aspect has been designed to ensure efficiency, protection, and sustainability on site.
Designed to deliver maximum performance.
Thanks to its compact structure, integrated technical solutions, and complete protection, it guarantees high performance, easy installation, and long-lasting durability for external insulation systems.
Green design
The thermal insulation properties and recyclability of UN!CO allow designers to create truly green buildings, ensuring energy savings and environmental sustainability.
EASY INSTALLATION
The molding process ensures stable and precise panels with a high-density surface layer that protects the edges and makes installation easier, faster, and more accurate for installers.
HIGH IMPACT RESISTANCE

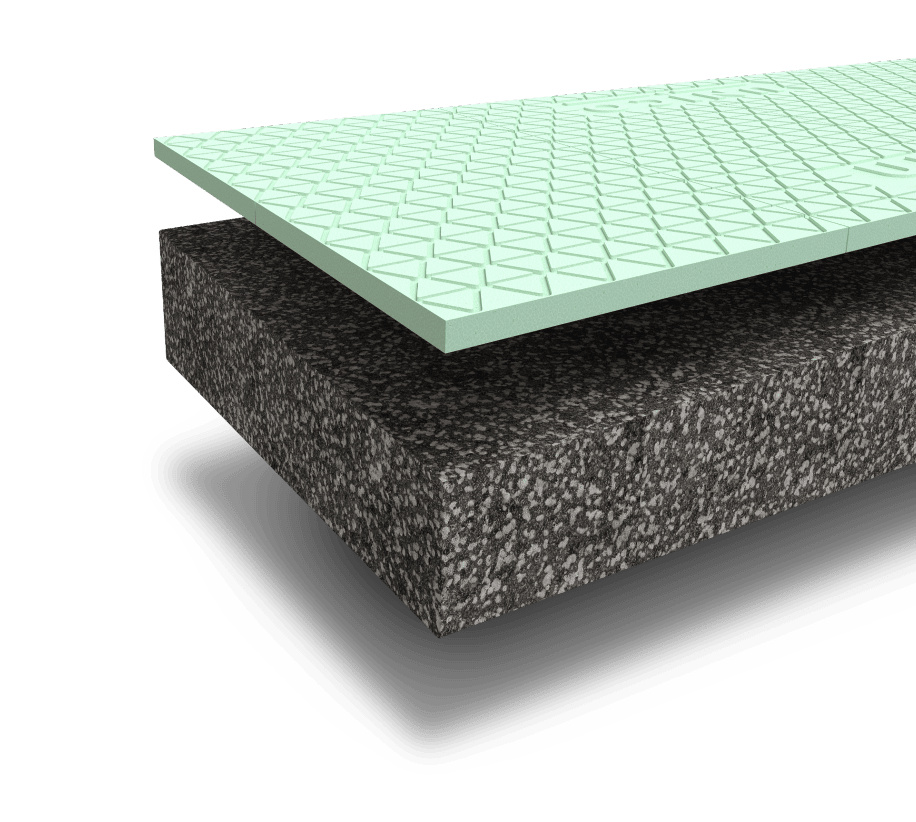

The outer EPS 350 layer provides up to 80% higher impact resistance compared to standard external insulation panels.
EXCELLENT THERMAL INSULATION
UN!CO is made with improved lambda EPS, ensuring high insulation performance with a certified value of 0.030 W/mK.
STRESS-RELIEVED PANELS
UN!CO features special stress-relief cuts on both sides — 15 mm deep grooves that ensure the right flexibility of the panel, resulting in crack-free façades.
LOW HYGROSCOPICITY
UN!CO is a molded EPS insulation panel made in a single block, with closed-cell beads that ensure compactness, moisture resistance, and long-lasting performance.
HIGH REFLECTANCE
The bright, reflective surface of UN!CO protects the material from solar degradation, eliminating the need for scaffold shading during installation or prolonged exposure to sunlight.
FULL PACKAGING PROTECTION
UN!CO is fully protected on all sides with packaging that provides complete shielding from UV rays. The bag can be reused to collect and recycle installation waste.
NON-TOXIC AND RECYCLABLE
UN!CO is made from non-toxic, completely inert materials. Installation is safe and does not require personal protective equipment (PPE). It is 100% recyclable (PS06) and can be delivered to standard local recycling centers as any other recyclable material.
CAM AND UNI COMPLIANT
More than 15% of the raw materials used in the production of UN!CO come from recycled sources, in compliance with CAM (Minimum Environmental Criteria) regulations. UN!CO is CE-marked and fully compliant with UNI EN 13163 standards.
Technical data
Sizes
Sizes
1000 x 500 mm
Available thicknesses
From 60 to 240 mm
Useful area
0,5 m²
Technical characteristics |
Norm |
Values |
|---|---|---|
| Thermal resistance or thermal conductivity | EN13163:2012 +A1:2015 |
/ 0,030 w/mK |
| Fire reaction class | EN 13501 | / E |
| Thickness tolerance | EN 823 | T(1) +/- 1 mm |
| Length tolerance | EN 822 | L(2) +/- 2 mm |
| Width tolerance | EN 822 | W(2) +/- 2 mm |
| Orthogonality tolerance | EN 824 | S(2) +/- 2/1000 mm |
| Flatness tolerance | EN 825 | P(5) 5 mm |
| Dimensional stability | EN 1603 | DS(N)2 +/- 0,2% |
| Compression stress 10% deformation | EN 826 | CS(10)100 ≥ 100 kPa |
| Flexural strength | EN 12089 | BS 150 ≥ 150 kPa |
| Vapour diffusion resistance | EN 12086 | μ < 30-70 |
| Perpendicular tensile strength of faces | EN 1607 | TR 150 ≥ 150 kPa |
| Water absorption by partial immersion | EN 29760 | Wlp ≤ 0,5 kg/m2 |
| Cutting module | EN 12090 | Gm ≥ 1 N/mm2 |
| Shear strength | EN 12090 | ftk ≥ 0,02 N/mm2 |
Download Area
ISIWALL, THERMAL INSULATION

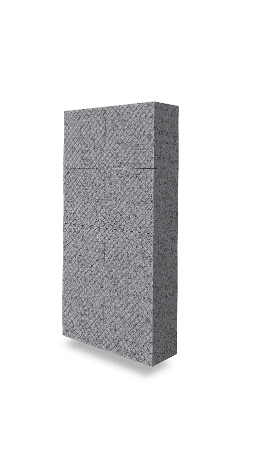

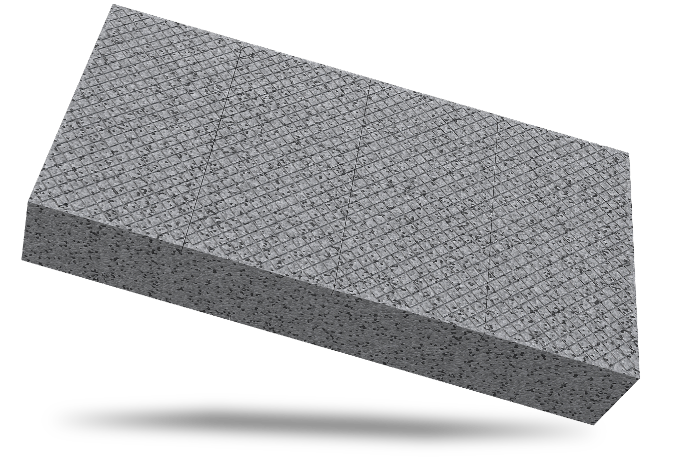

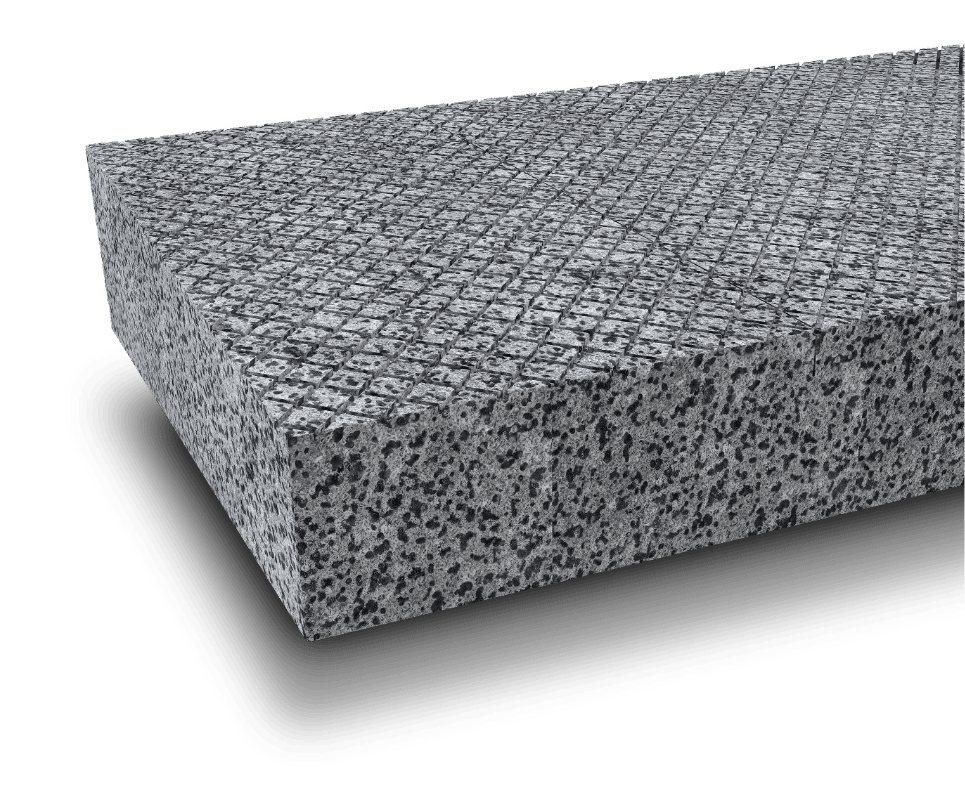

TERMALPOR C
The improved and certified lambda insulation panel. Termalpor C is a moulded panel made of sintered expanded polystyrene (EPS), with improved lambda for superior thermal insulation.
EXCELLENT THERMAL INSULATION
Termalpor C is made with improved lambda EPS. The panel has high insulating capacity, certified at 0.030 W/mK.
DETENSIONED PANEL
Termalpor C features special stress relief cuts on both sides. These 15 mm deep slits ensure the panel has the right flexibility for a crack-free façade.
INTEGRAL PACKAGING
Termalpor C is fully protected: the packaging covers the panels on all six sides of the package, with no parts exposed, ensuring total protection from sunlight.
COMPLIES WITH CAM AND UNI STANDARDS
More than 15% of the raw materials used in the production of Termalpor C come from recycling, as required by CAM regulations. Termalpor C is CE marked in accordance with UNI EN 13163 regulations.
Technical data
Sizes
Sizes
1000 x 500 mm
Available thicknesses
From 60 to 240 mm
Useful area
0,5 m²
Download Area
ISIWALL, THERMAL INSULATION
TERMALTOP C
Highly reflective white EPS panel. Termalpor C is a moulded panel made of sintered expanded polystyrene (EPS).
TENSION-RELEASED PANEEL
Special 15 mm deep stress relief cuts ensure the panel has the right flexibility to prevent future cracks in the cladding.
INTEGRAL PACKAGING
Termaltop C is fully protected: the packaging covers the panels on all six sides, ensuring total protection from sunlight.
NON-TOXIC AND RECYCLABLE
Termaltop C is made from non-toxic, inert materials: installation is safer and does not require PPE. It is 100% recyclable (PS06) and can be disposed of at normal collection centres.
HIGH REFLECTANCE
The Termaltop C panel, made of highly reflective light polystyrene, resists radiation during installation, preventing deterioration and eliminating the need to shield scaffolding.
COMPLIES WITH CAM AND UNI STANDARDS
More than 15% of recycled raw materials are used in the production of Termaltop C, as required by CAM regulations. Termaltop C is CE marked in accordance with UNI EN 13163 regulations.
Technical data
Sizes
Sizes
1000 x 500 mm
Available thicknesses
From 60 to 240 mm
Useful area
0,5 m²
Download Area
ISIWALL, THERMAL INSULATION
Startop
The panel with reinforced front designed for skirting boards. Startop, with high thermal resistance and EPS 350 front reinforcement, is ideal for skirting boards in insulating cladding, practical to apply and durable.
STRESS-RELIEVED PANEL
Special 15 mm deep stress relief cuts ensure the panel has the right flexibility to prevent future cracks in the cladding.
EXCELLENT THERMAL INSULATION
The EPS with improved lambda increases the panel’s insulating capacity. Certified lambda of 0.030 W/mK.
HIGH RESISTANCE
In Startop, the outer layer in EPS 350 provides up to 80% more impact resistance than normal cladding panels.
EASY INSTALLATION
Moulding ensures precise and stable panels; the high-density surface layer prevents edge rounding and facilitates faster and more accurate installation.
COMPLIES WITH CAM AND UNI STANDARDS
More than 15% of the raw materials used in the production of Startop come from recycling, as required by CAM regulations. Finally, Startop is CE marked in accordance with UNI EN 13163 regulations.
Technical data
Sizes
Sizes
1000 x 500 mm
Available thicknesses
From 60 to 240 mm
Useful area
0,5 m²
Download Area
ISIWALL, THERMAL INSULATION
Load capacity
740kg
WINDSTAFF
Brackets for mounting hinges.
Windstaff brackets, made of polyamide 6 and nylon-fibreglass, allow the mounting of external elements on EPS cladding (shutters, railings, guides), ensuring excellent screw fastening and no thermal bridges.
Invisible under plaster, they are available in 8 thicknesses (60-200 mm).
Spacer
Spacer for Windstaff.
10 mm spacer for the WINDSTAFF bracket, designed to achieve odd measurements and/or compensate for wall irregularities, improving precision and consistency during installation.
Download the
technical data sheet
SILLTOP
Technical marble floors and skirting boards. Silltop accessories are customisable and durable, enhancing the aesthetics of the cladding and, thanks to the integrated EPS, eliminating thermal bridges at entrances and windows.
DURABLE AND DOES NOT ABSORB LIQUIDS
Quartz engineered marble is an agglomerate that remains unchanged over time and also has the characteristic of not absorbing liquids.
EPS INSULATION
The EPS panel, integrated into the floor, provides perfect prevention of thermal bridges.
CUSTOMISED FOR QUICK INSTALLATION
Silltop accessories are supplied made to measure, according to the specific requirements of the building site. Politop, with its own technicians, takes care of carrying out the measurements and supplying you with the finished sills and skirting boards, ready for installation.
Also for skirting boards
Silltop can also be used to create skirting boards to protect the lower part of the cladding from the combined effects of moisture, vehicle traffic and physical stress. Silltop skirting boards are available in various thicknesses and heights.
Ideal for renovations
Silltop sills are ideal for renovations as they can be easily installed on existing sills without having to remove them.
Available in different colours
Silltop is available in various thicknesses, with a glossy or matt finish and in three different colours.
White
Beige
Grey
DECORWIND
Decorwind ventilation grilles are useful elements for screening air diffusion duct vents; they enhance the aesthetics of the building, harmonising with any other decorative elements.
DECORWIND grilles are suitable for covering ventilation ducts with a diameter of 100–150 cm² (ref. UNI-CIG 7129 standard).
SQUARE GRIDS
185 x 185 mm – thickness 20 mm
SQUARE GRIDS
Diameter 155 mm – thickness 20 mm
Download the
technical data sheet
